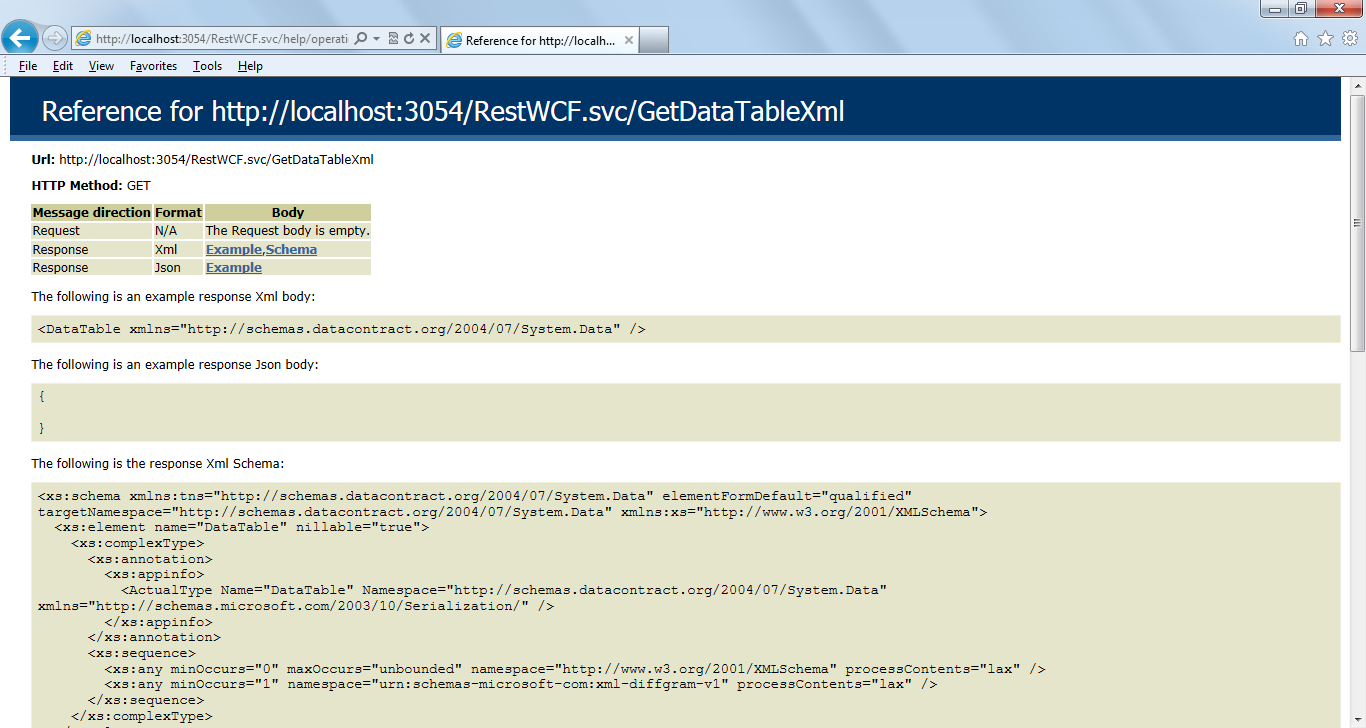

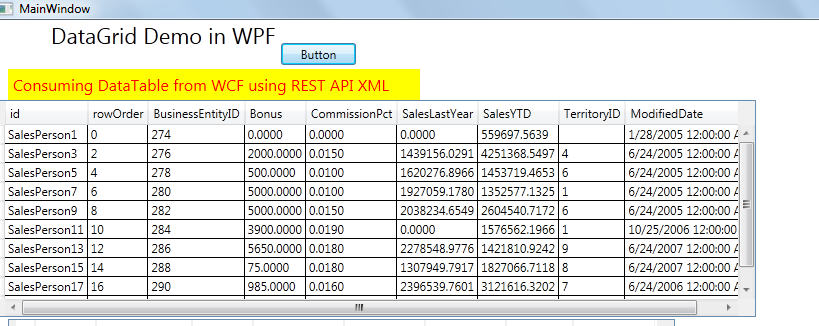

How to return a datatable from a wcf service rest C#This example returns datatable from WCF rest service,and consumes inWPF client using xml deserialization
public DataTable GetDataTableXml() { DataTable salesdata = new DataTable("SalesPerson");
<serviceBehaviors> <behavior> <!-- To avoid disclosing metadata information, set the value below to false before deployment --> <serviceMetadata httpGetEnabled="true" /> <!-- To receive exception details in faults for debugging purposes, set the value below to true. Set to false before deployment to avoid disclosing exception information --> <serviceDebug includeExceptionDetailInFaults="true" /> </behavior> <behavior name="restbeh"> <serviceDebug httpHelpPageEnabled="True" includeExceptionDetailInFaults="true" /> <serviceMetadata httpGetEnabled="True"/> </behavior> </serviceBehaviors> <endpointBehaviors> <behavior name="restendbeh"> <!--<soapProcessing processMessages="True"/>--> <webHttp helpEnabled="True" faultExceptionEnabled="True" defaultBodyStyle="Bare" defaultOutgoingResponseFormat="Xml"/> </behavior> </endpointBehaviors> </behaviors> <bindings> <webHttpBinding> <binding name="myrestbinding"> <security mode="None"></security> <readerQuotas maxArrayLength="65536"/> </binding> </webHttpBinding> </bindings> <services> <service name="WCFServicesREST.RestWCF" behaviorConfiguration="restbeh"> <endpoint contract="WCFServicesREST.IRestWCF" binding="webHttpBinding" bindingConfiguration="myrestbinding" behaviorConfiguration="restendbeh"></endpoint> </service> </services> <serviceHostingEnvironment multipleSiteBindingsEnabled="true" aspNetCompatibilityEnabled="True"/> </system.serviceModel> <system.webServer> </configuration> Consuming in WPF Application
[XmlRoot(ElementName = "SalesPerson", Namespace = "")] public class SalesPerson { [XmlAttribute(Namespace = "urn:schemas-microsoft-com:xml-diffgram-v1")] public String id { get; set; } [XmlAttribute(Namespace = "urn:schemas-microsoft-com:xml-msdata")] public int rowOrder { get; set; } [XmlElement] public int? BusinessEntityID { get; set; } [XmlElement] public decimal? Bonus { get; set; } [XmlElement] public decimal? CommissionPct { get; set; } [XmlElement] public decimal? SalesLastYear { get; set; } [XmlElement] public decimal? SalesYTD { get; set; } [XmlElement] public int? TerritoryID { get; set; } [XmlElement] public DateTime? ModifiedDate { get; set; } } Note: Each element in this class should match columns returned from wcf Datatable, column names are case sensitive. null columns should use ?. Namespaces also must match, otherwise "serialization error saying <SalesPerson xmlns=''> not expected here" will appear. Because WCF Rest doesn't serve proxy class. So You need ti call WebRequest/HttpWebRequest in System.Net. as shown below WebRequest req = WebRequest.Create("http://localhost:3054/RestWCF.svc/GetDataTableXml"); req.ContentType = "text/xml"; WebResponse resp = req.GetResponse(); Stream stream = resp.GetResponseStream(); XmlSerializerFactory fact = new XmlSerializerFactory(); XmlReader re = XmlReader.Create(stream); while (re.Read()) { if (re.NodeType == XmlNodeType.Element && re.LocalName.Equals("SalesPerson")) { XmlSerializer ser = fact.CreateSerializer(typeof(SalesPerson)); SalesPerson p = (SalesPerson)ser.Deserialize(re); //add to list. salesPersonXML.Add(p); } } //Bind to datagrid in WPF datagrid1.ItemsSource = salesPersonXML; OUTPUT |
Windows Presentation Foundation WPF 4.0 TUTORIALS, Windows Presentation Foundation WPF 4.5 TUTORIALS,WPF basics, WPF Threading,WPF CONTROLS, WPF XML,WPF and DATABASE, WPF and Graphs
b
Thursday, 27 December 2012
How to return a datatable from a wcf service rest C#
